Right Outside Rearview Mirror C1 (BFT) 6 Way

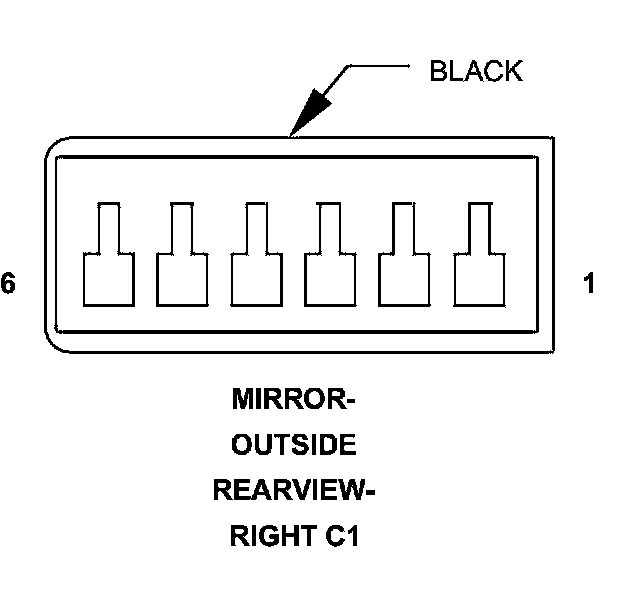

Connector C1 - (BFT) 6 WAY

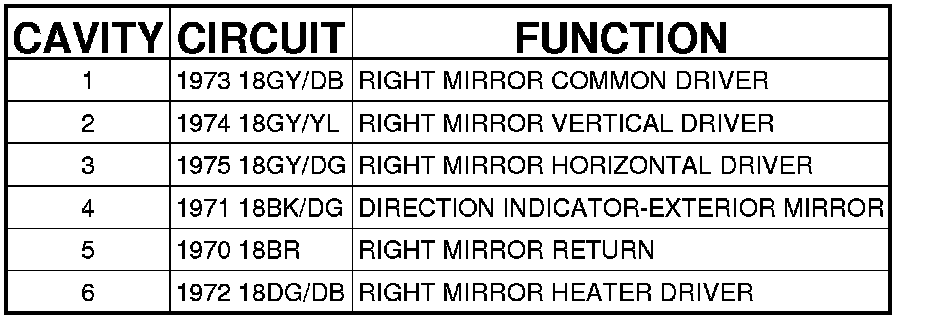

MIRROR-OUTSIDE REARVIEW-RIGHT - (BFT) 6 WAY
