Freightliner Truck
>>
2009
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Connector Views
>>

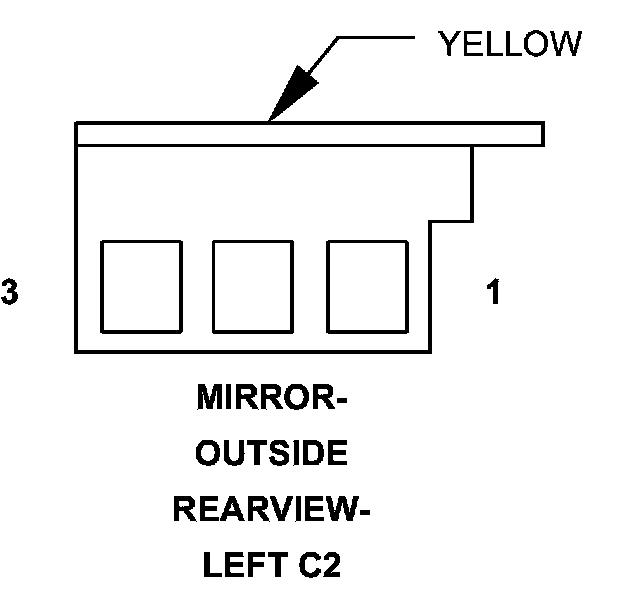

Left Outside Rearview Mirror C2 (FT) 3 Way
Left Outside Rearview Mirror C2 (FT) 3 Way

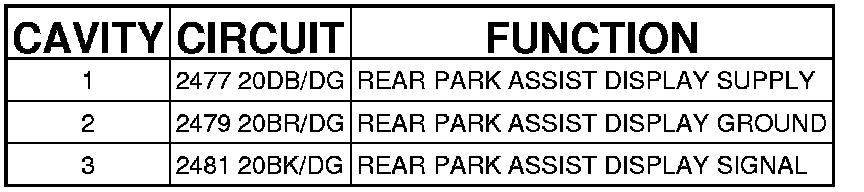

Connector C2 - (FT) 3 WAY
MIRROR-OUTSIDE REARVIEW-LEFT - (FT) 3 WAY
