Left Outside Rearview Mirror C1 (FT) 6 Way
Left Outside Rearview Mirror C1 (FT) 6 Way

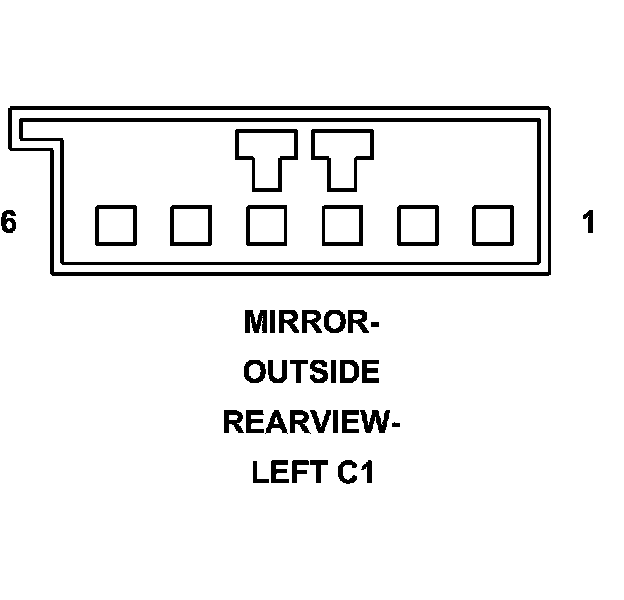

Connector C1 - (FT) 6 WAY

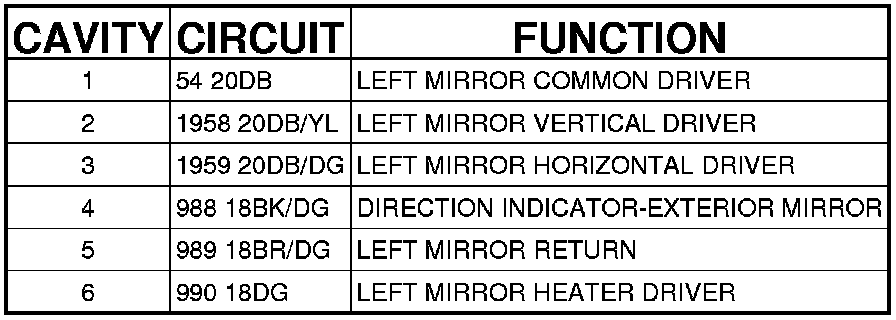

MIRROR-OUTSIDE REARVIEW-LEFT - (FT) 6 WAY
