Home >> Freightliner Truck >> 2009 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Diagrams >> Passenger Door Latch (BFT) 4 Way

Passenger Door Latch (BFT) 4 Way

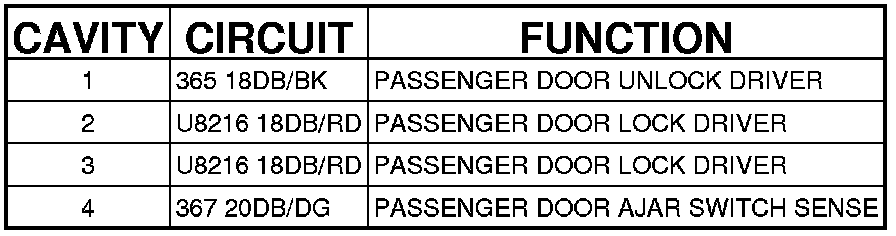

Connector - (BFT) 4 WAY

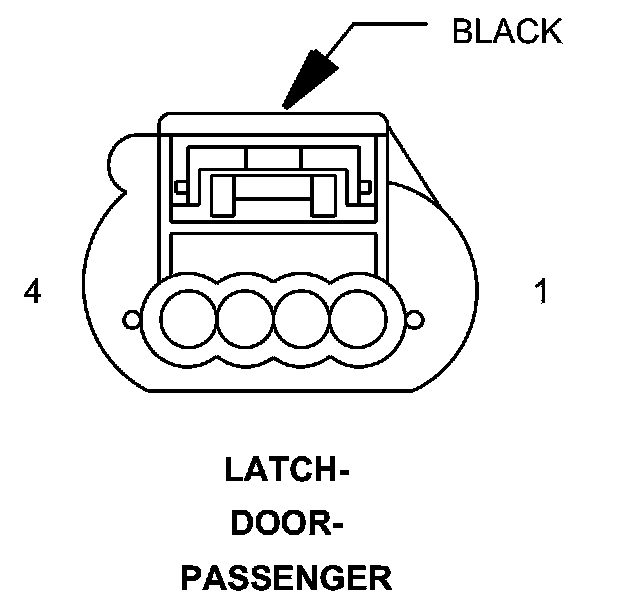

LATCH-DOOR-PASSENGER - (BFT) 4 WAY
