Door Lock Cylinder - Removal
REMOVAL

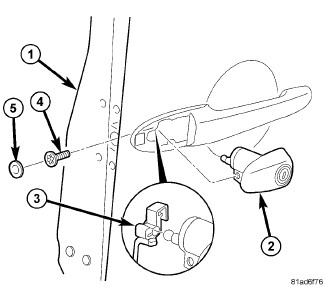

1. Remove cover (5).
2. Unscrew bolt (4).
3. Carefully pry out lock cylinder (2).
4. Remove release lever (3) from lock cylinder.
NOTE: Secure release lever (3) to prevent falling into door.
REMOVAL
1. Remove cover (5).
2. Unscrew bolt (4).
3. Carefully pry out lock cylinder (2).
4. Remove release lever (3) from lock cylinder.
NOTE: Secure release lever (3) to prevent falling into door.
