Fuel Fill Door - Installation






INSTALLATION

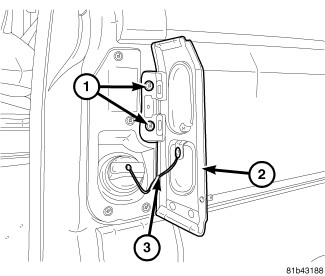

1. Install the door (2) and bolts (1).
2. Connect filler cap tether (3).
3. Close doors.
