CD/DVD Changer - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

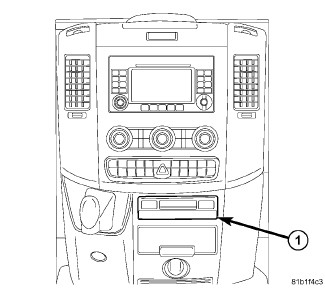

2. Using a small paper clip or equivalent, unlock the retaining clips of the CD changer by inserting the paper clip into the four removal openings and disengage the locking mechanism.
3. Remove the CD changer and frame.
4. Disconnect the electrical connectors.
5. Remove the frame (1) from CD changer. Unclip the frame in the bottom right corner, bottom left corner and at the top in the center of the CD changer with a long wedge and remove.
