Keyless Entry Transmitter Battery: Service and Repair

FOBIK TRANSMITTER BATTERY REPLACEMENT

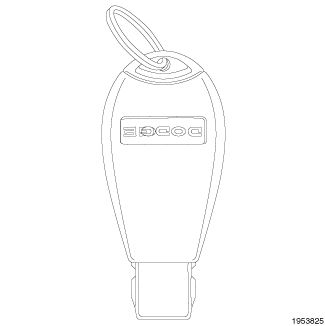

FOBIK WITH BATTERY COVER





NOTE: Do not disturb the metal terminal near the battery. Avoid touching the new battery. Skin oils may cause battery deterioration. If battery are touched, clean with rubbing alcohol.

To replace the FOBIK transmitter battery:

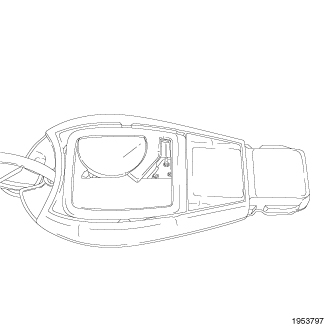

1. Using a small flat bladed tool, carefully remove the battery cover on the back of the FOBIK.





2. Remove the battery one at a time by slightly lifting up and sliding out from the FOBIK.
3. Replace the battery with the same type of battery cell.
4. Install the battery with the positive terminal up.

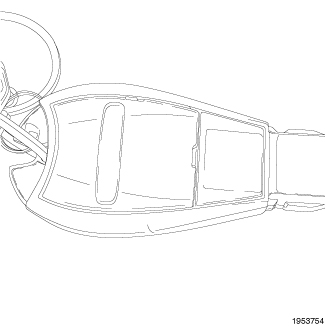

5. Install battery cover and snap into place.
6. Test FOBIK operation.

FOBIK WITHOUT BATTERY COVER





NOTE: Do not disturb the metal terminal near the battery. Avoid touching the new battery. Skin oils may cause battery deterioration. If battery are touched, clean with rubbing alcohol.

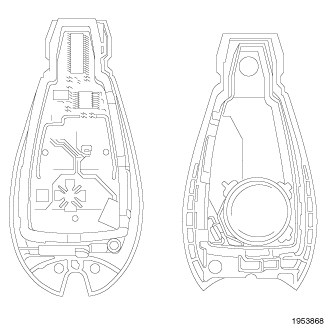

This design is a clam shell design whereby both halves are split apart.

1. Remove the valet/spare key from the FOBIK if present.
2. Using a trim stick C-4755 or equivalent, carefully separate the top half from the bottom half.





3. Lift up on the battery to remove.
4. Replace battery with the same type of cell.
5. Install new battery negative side up.
6. Snap the top and bottom halves together.
7. Test FOBIK operation.
