U0431

U0431-IMPLAUSIBLE DATA FROM FCM

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams

Theory of Operation

The messages sent on the CAN bus are distinguished by an identifier (ID). Each CAN ID is defined to contain a certain number of bytes. The Transmission Control Module (TCM) verifies that it has received the proper number of bytes for each ID.

- When Monitored:
Continuously with the ignition on, one valid CAN ID received at least once, and no U0002-CAN Bus Off Performance DTC present.

- Set Condition:
When the TCM detects an incorrect CAN ID from the FCM.





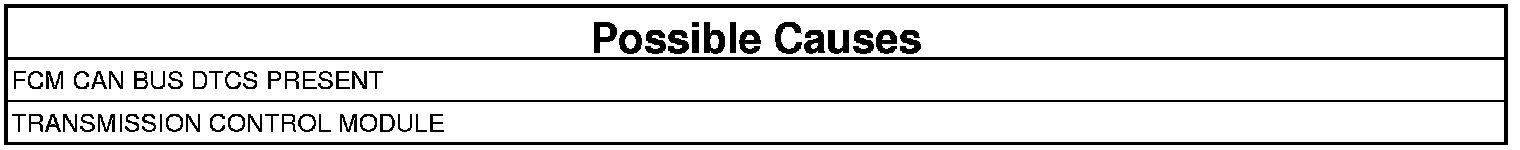

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Transmission Pre-Diagnostic Troubleshooting Procedures
CHECK FOR FCM CAN BUS DTCS
1. With the scan tool, read FCM DTCs.

Are there any FCM CAN BUS DTCs present?

Yes

- Refer to DTC Based Diagnostics and perform the appropriate diagnostic procedure.
- Perform NAG1 TRANSMISSION VERIFICATION TEST.NAG1 Transmission Verification Test

No

- Using the schematics as a guide, check the Transmission Control Module (TCM) pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the TCM.
- Perform NAG1 TRANSMISSION VERIFICATION TEST.NAG1 Transmission Verification Test
