P0604

P0604-INTERNAL CONTROL MODULE RAM





For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams

Theory of Operation

The Transmission Control Module (TCM) performs various internal tests to verify proper controller operation. If the TCM detects an error with the controllers Random Access Memory (RAM), the controller will enter Limp-in mode and illuminate the MIL.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
If the TCM detects an error with the controllers Random Access Memory (RAM).





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Transmission Pre-Diagnostic Troubleshooting Procedures

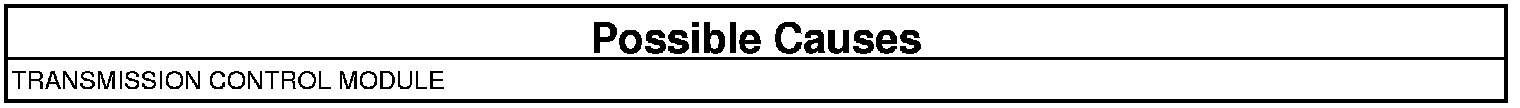

TRANSMISSION CONTROL MODULE

Repair

- Using the schematics as a guide, check the Transmission Control Module (TCM) pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the TCM.
- Perform NAG1 TRANSMISSION VERIFICATION TEST.NAG1 Transmission Verification Test
