Restraint System - Verbose Codes

DEPLOYMENT DATA RECORD FULL

Theory of Operation

The Airbag Deployment Counter increments each time the vehicle is in an impact of sufficient force to cause the deployment of any front airbag, side airbag or tensioners. After five impact the Airbag Deployment Counter will be equal to 5 and the Diagnostic Trouble Code (DTC) will be set active and latch active permanently. Replacement of the Occupant Restraint Controller is the only repair for this condition.

- When Monitored:
With the ignition on the ORC on board diagnostics (OBD) monitors the Airbag Deployment Counter.

- Set Condition:
The ORC will set this DTC when the Airbag Deployment Counter is equal to 5. This DTC will be set active and latch active permanently, DTC cannot be erased, and the ORC must be replaced.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure

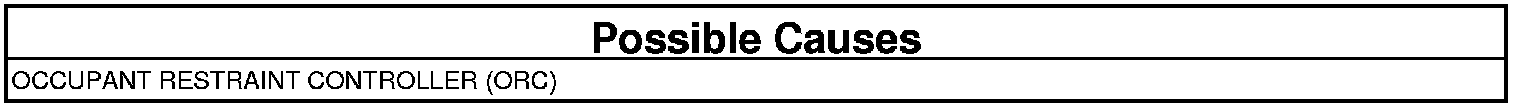

REPLACE THE ORC

Repair

- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the ORC.
- Perform RESTRAINT SYSTEM VERIFICATION TEST.Verification Tests.
