9601-REFRIGERANT COMPRESSOR CONTROL VALVE CIRCUIT LOW

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

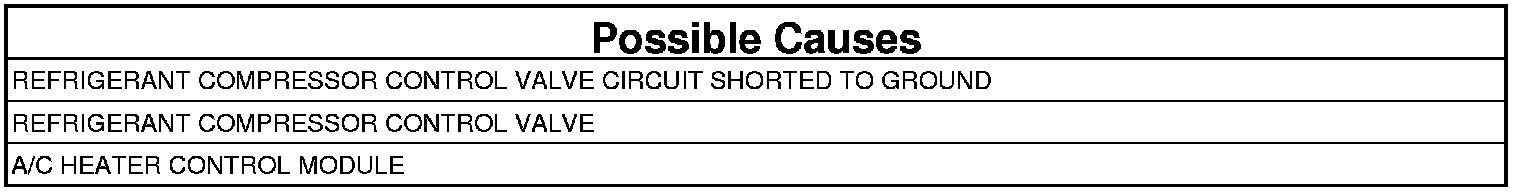

- When Monitored:
Whenever the module is awake.

- Set Condition:
When the Refrigerant Compressor Control Valve circuit is shorted to ground.





1. TEST FOR INTERMITTENT CONDITION
1. With the scan tool, record and erase DTCs.
2. Turn the ignition on and wait 30 seconds.
3. Operate the HVAC system.
4. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform the BODY VERIFICATION TEST. Verification Tests.

2. REFRIGERANT COMPRESSOR CONTROL VALVE
1. Disconnect the Refrigerant Compressor Control Valve harness connector.
2. With the scan tool, record and erase DTCs
3. Cycle the ignition from on to off three times.
4. Turn the ignition on.
5. Operate the HVAC system.
6. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

No

- Replace the Refrigerant Compressor Control Valve.
- Perform the BODY VERIFICATION TEST. Verification Tests.

Yes

- Go To 3

3. REFRIGERANT COMPRESSOR CONTROL VALVE CIRCUIT SHORTED TO GROUND
1. Turn the ignition off.
2. Disconnect the A/C Heater Control Module C4 harness connector.
3. Measure the resistance between Ground and the Refrigerant Compressor Control Valve Signal circuit.

Does the Ohm meter read open circuit?

Yes

- Repair the Refrigerant Compressor Control Valve circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Verification Tests.

No

- Replace the A/C Heater Control Module.
- Perform the BODY VERIFICATION TEST. Verification Tests.
