9000 - 9999: 9349

9349-CAN B BUS CIRCUIT

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously.

- Set Condition:
Whenever the CAN B Bus (+) or CAN B Bus (-) is open, shorted to voltage or shorted to ground.





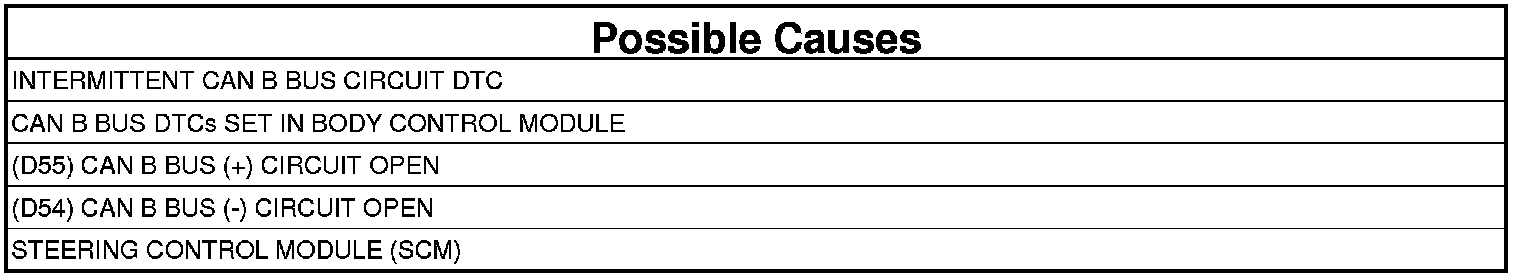

1. DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, select Clear Stored DTCs in the Steering Control Module.
3. Cycle the ignition from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
4. With the Scan Tool, select View DTCs in the Steering Control Module.

Does the DTC reset and/or remain active?

Yes

- Go To 2

No

- Go To 6

2. CAN B BUS DTCs SET IN BODY CONTROL MODULE
1. With the Scan Tool, select View DTCs in the Body Control Module (BCM).

Are there any active CAN B Bus DTCs?

Yes

- Perform the CAN B BUS diagnostic procedure.CAN B BUS

No

- Go To 3

3. (D55) CAN B BUS (+) CIRCUIT OPEN
1. Turn the ignition off.
2. Disconnect the Steering Control Module harness connector.
3. Disconnect the Body Control Module harness connector.
4. Measure the resistance of the (D55) CAN B Bus (+) circuit between the Steering Control Module harness connector and the Body Control Module C1 harness connector.

Is the resistance above 2.0 ohms?

Yes

- Repair the (D55) CAN B Bus (+) circuit for an open.
- Perform the BODY VERIFICATION TEST Verification Tests.

No

- Go To 4

4. (D54) CAN B BUS (-) CIRCUIT OPEN
1. Measure the resistance of the (D54) CAN B Bus (-) circuit between the Steering Control Module harness connector and the Body Control Module C1 harness connector.

Is the resistance above 2.0 ohms?

Yes

- Repair the (D54) CAN B Bus (-) circuit for an open.
- Perform the BODY VERIFICATION TEST Verification Tests.

No

- Go To 5

5. STEERING CONTROL MODULE (SCM)
1. Inspect the wiring between the Steering Control Module harness connector and the Body Control Module harness connector. If any problems are found, repair as necessary. If no problems are found, view repair.

Repair

- Replace the Steering Control Module (SCM).
- Perform the BODY VERIFICATION TEST Verification Tests.

6. INTERMITTENT CAN B BUS CIRCUIT DTC
1. The conditions necessary to set this DTC are not present at this time.
2. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
3. While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.
4. Look for the data to change or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

- Repair as necessary.
- Perform the BODY VERIFICATION TEST Verification Tests.

No

- Test complete.
