Steering Control Module (SCM)

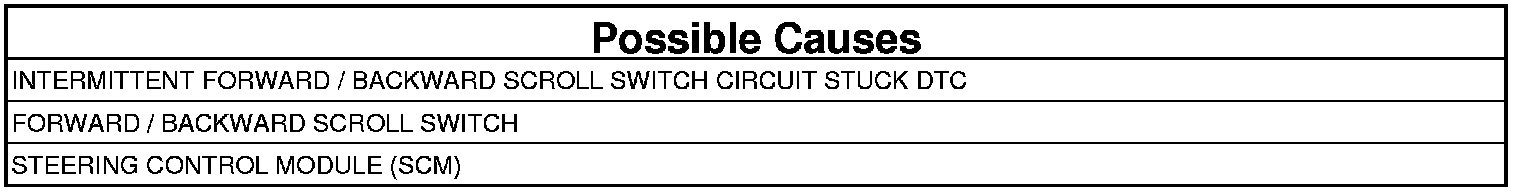

9332-FORWARD / BACKWARD SCROLL SWITCH CIRCUIT STUCK

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
The Steering Control Module senses that the Forward / Backward Scroll Switch is in the Set position for greater than 50 seconds.





1. DTC IS ACTIVE

NOTE: If a BATTERY VOLTAGE LOW or BATTERY VOLTAGE HIGH DTC is set along with this DTC, diagnose the battery voltage DTC first.

1. Ignition on, engine not running.
2. With the Scan Tool, select View DTCs in the Steering Control Module.

Is the DTC status Active at this time?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform the BODY VERIFICATION TEST. Verification Tests.

2. FORWARD / BACKWARD SCROLL SWITCH
1. Turn the ignition off.
2. Replace the Forward / Backward Scroll Switch.
3. Turn the ignition on.
4. Press and release the Forward / Backward Scroll Switch several times.
5. With the Scan Tool, Clear Stored DTCs in the Steering Control Module.
6. With the Scan Tool, select Data Display and view the Forward / Backward Scroll switch data.
7. While monitoring the Forward / Backward Scroll switch data, press and release the Forward / Backward Scroll Switch several times.

Does the Forward / Backward Scroll switch data change from Set to Not Set as the switch is moved to each position?

Yes

- Test complete.
- Perform the BODY VERIFICATION TEST. Verification Tests.

No

- Replace the Steering Control Module (SCM).
- Perform the BODY VERIFICATION TEST. Verification Tests.
