9000 - 9999: 9330
9330-(+) (-) SWITCH CIRCUIT STUCK
For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.
- When Monitored:
Continuously with the ignition on.
- Set Condition:

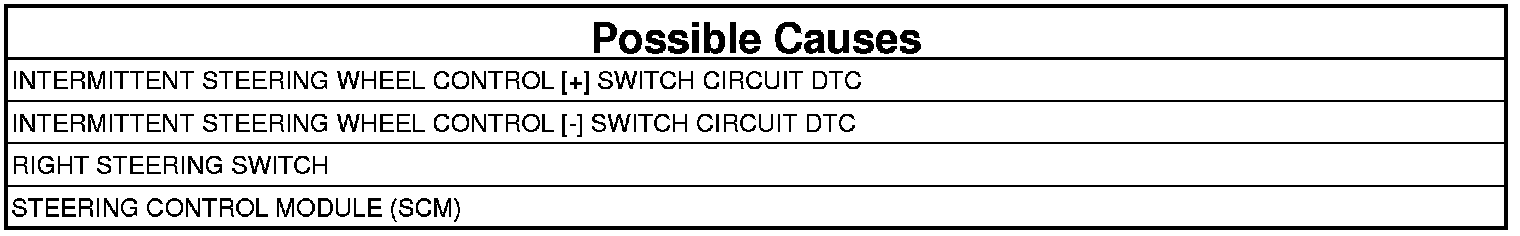

The Steering Control Module senses that the Steering Wheel Control Plus (+) Switch or the Steering Wheel Control Minus (-) Switch is in the Set position for greater than 50 seconds.
1. DTC IS ACTIVE
NOTE: If a BATTERY VOLTAGE LOW or BATTERY VOLTAGE HIGH DTC is set along with this DTC, diagnose the battery voltage DTC first.
1. Ignition on, engine not running.
2. With the Scan Tool, select View DTCs in the Steering Control Module.
Is the DTC status for this DTC Active at this time?
Yes
- Go To 2
No
- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform the BODY VERIFICATION TEST. Verification Tests.
2. RIGHT STEERING SWITCH
1. Turn the ignition off.
2. Replace the Right Steering Switch.
3. Turn the ignition on.
4. Press and release the Plus (+) and Minus (-) Switch several times.
5. With the Scan Tool, Clear Stored DTCs in the Steering Control Module.
6. With the Scan Tool, select Data Display and view the Plus (+) switch data.
7. While monitoring the Plus (+) switch data, press and release the Plus (+) Switch several times.
8. With the Scan Tool, select Data Display and view the Minus (-) switch data.
9. While monitoring the Minus (-) switch data, press and release the Minus (-) Switch several times.
Does the Plus (+) switch data and the Minus (-) switch data change from Set to Not Set when the switch is pressed and released?
Yes
- Test complete.
- Perform the BODY VERIFICATION TEST. Verification Tests.
No
- Replace the Steering Control Module (SCM).
- Perform the BODY VERIFICATION TEST. Verification Tests.
