9000 - 9999: 9308

9308-RECIRCULATION DOOR CONTROL CIRCUIT PERFORMANCE

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the Ignition Switch in the on position and the A/C Heater Control is awake.

- Set Condition:
This code will set when the Recirculation Door Control circuit is open or shorted to voltage.





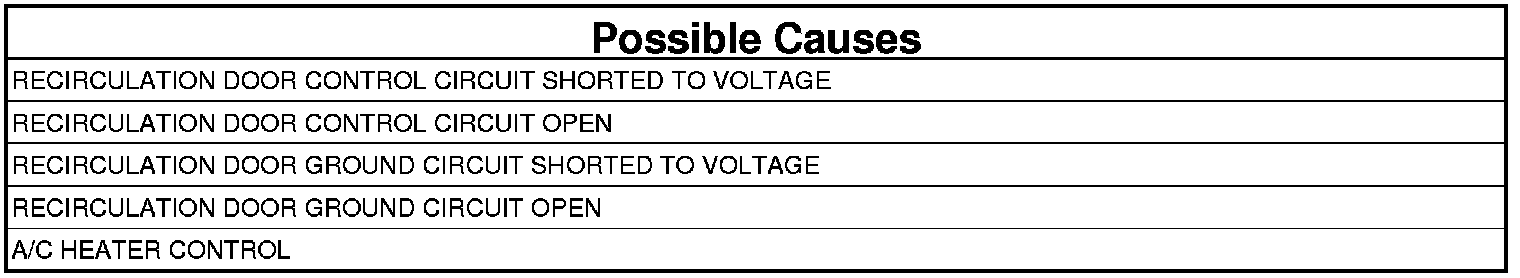

1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase all HVAC DTC's.
3. Operate the HVAC system.
4. Wait 30 seconds.
5. With the scan tool, read all HVAC DTC's.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

2. RECIRCULATION DOOR ACTUATOR CONTROL CIRCUIT SHORTED TO VOLTAGE
1. Turn the ignition off.
2. Disconnect the A/C Heater Control harness connectors.
3. Disconnect the Recirculation Door Actuator harness connector.
4. Turn the ignition on.
5. Measure the voltage of the Recirculation Door Actuator Control circuit.

Is there any voltage present?

Yes

- Repair the Recirculation Door Actuator Control circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go to 3

3. RECIRCULATION DOOR ACTUATOR CONTROL CIRCUIT OPEN
1. Turn the ignition off.
2. Measure the resistance of the Recirculation Door Actuator Control circuit.

Does the ohm meter read open circuit?

Yes

- Repair the Recirculation Door Actuator Control circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go To 4

4. RECIRCULATION DOOR ACTUATOR GROUND CIRCUIT SHORTED TO VOLTAGE
1. Turn the ignition on.
2. Measure the voltage Recirculation Door Actuator Ground circuit.

Is there any voltage present?

Yes

- Repair the Recirculation Door Actuator Ground circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go to 5

5. RECIRCULATION DOOR GROUND CIRCUIT OPEN
1. Turn the ignition off.
2. Measure the resistance of the Recirculation Door Actuator Ground circuit

Does the ohm meter read open circuit?

Yes

- Repair the Recirculation Door Actuator Ground circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Replace the A/C Heater Control.
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests
