Cabin Compartment Node (CCN)

9200-CABIN CONTROL MODULE TOG SENSOR PERFORMANCE

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

- Set Condition:

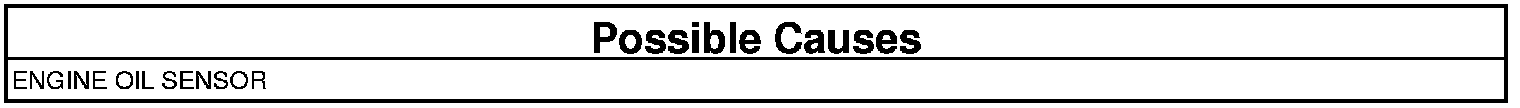

The Cluster detects an internal failure with the Engine Oil Sensor.





CHECK FOR ACTIVE DTC

NOTE: Check the ECM for any Engine Oil Sensor related DTCs. Repair as necessary before proceeding with this diagnostic procedure.

1. Turn the ignition on.
2. With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Engine Oil Sensor.
- Perform the BODY VERIFICATION TEST Verification Tests.

No

- Test complete.
