9000 - 9999: 9186

9186-MISSING/IMPLAUSIBLE BUSSED VEHICLE SPEED SIGNAL MESSAGE

Theory of Operation

When powered, the Occupant Restraint Controller (ORC) performs internal circuit and Bus communication tests. Active DTC's will be set if the ORC identifies internal circuit problems, missing or invalid Bus messages. The repair of this fault condition does not involve any external circuitry and centers on verifying the integrity of the module's internal circuitry and software validity

- When Monitored:
With the ignition ON, communication established with all modules, the ORC on board diagnostics continuously performs communication tests for valid messages transmitted between modules.

- Set Condition:
This DTC will be set active if the ORC does not receive a valid Bus message containing the Vehicle Speed Signal Bus message.





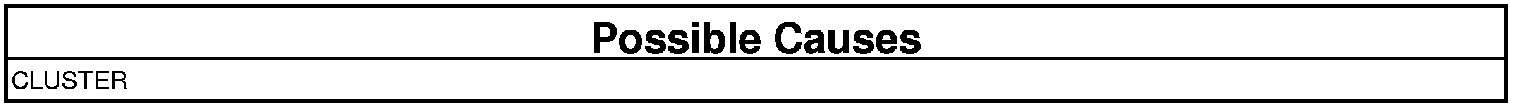

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure
CHECK FOR ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Cluster.
- Perform BODY VERIFICATION TEST. Verification Tests.

No

- Test complete.
- Perform BODY VERIFICATION TEST. Verification Tests.
