9000 - 9999: 9089

9089-SELF DIAGNOSIS FAULT IN PTS BUZZER

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

- Set Condition:

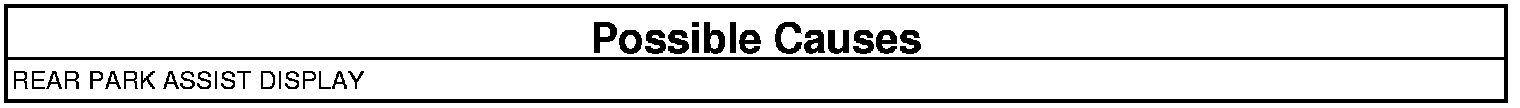

The Park Assist Module detects a failure in the Rear Park Assist Display.





CHECK FOR ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Rear Park Assist Display.
- Perform the BODY VERIFICATION TEST. Verification Tests.

No

- Test complete.
