Park Assist Module (PTS)

9085-SELF-DIAGNOSIS FAULT IN LEFT OUTSIDE MIRROR WARNING ELEMENT

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

- Set Condition:

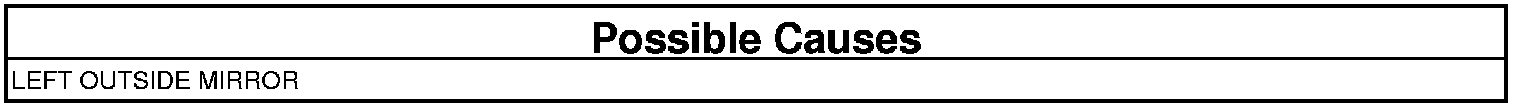

The Park Assist Module detects a failure in the Left Outside Mirror.





CHECK FOR ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Left Outside Mirror.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Test complete.
