Occupant Restraint Controller (ORC)

9085-LEFT SIDE IMPACT SENSOR 1 CONFIGURATION ERROR





Theory of Operation

When powered, the Occupant Restraint Controller (ORC) compares the vehicle component configuration to the vehicle equipment. The ORC cannot be re-configured and must be replaced if this DTC is active.

- When Monitored:
With the ignition ON.

- Set Condition:
The Occupant Restraint Controller (ORC) on board diagnostics compares the vehicle component configuration to the vehicle equipment.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure

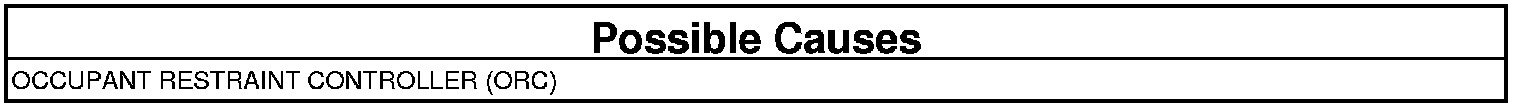

REPLACE THE ORC

NOTE: Ensure that the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read ORC DTC.

Does the scan tool display active: 9085-LEFT SIDE IMPACT SENSOR 1 CONFIGURATION ERROR?

Repair

- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the ORC.
- Perform *RESTRAINTS SYSTEM VERIFICATION TEST. Verification Tests
