9069-LEFT VENT WINDOW CONTROL CIRCUIT LOW





For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Whenever the module is awake.

- Set Condition:
When the left vent window circuit senses an excessive current draw for over 500 ms, this code will set





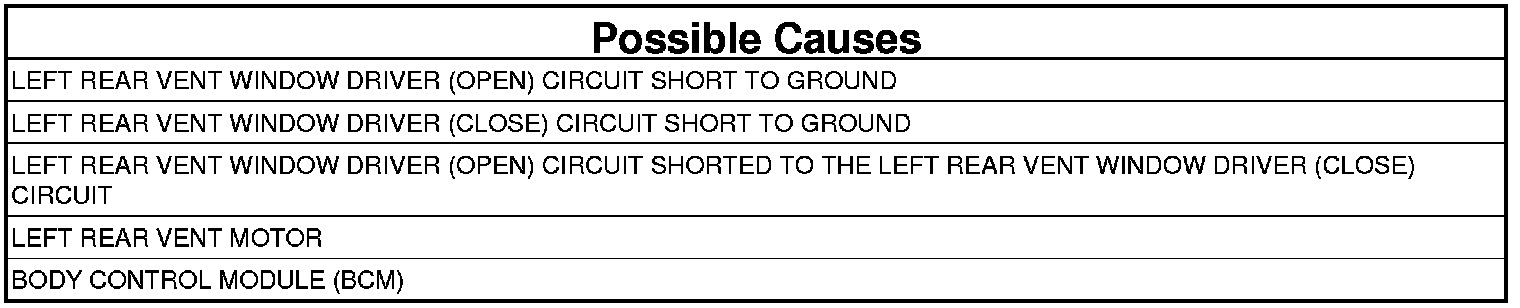

1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs
3. Operate the left rear vent motor in both directions several times.
4. Wait 30 seconds.
5. With the scan tool, read DTCs.

Does the scan tool display 9069-LEFT VENT WINDOW CONTROL CIRCUIT LOW?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Verification Tests.

2. REAR VENT MOTOR




1. With the scan tool, erase DTCs.

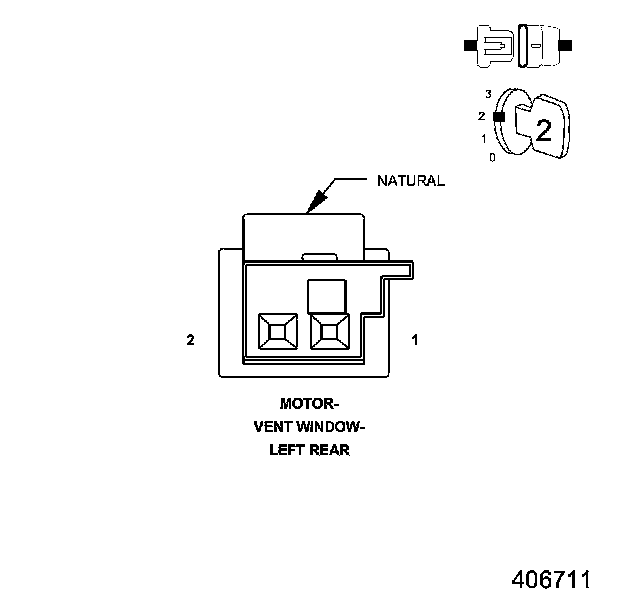

2. Disconnect the Left Rear Vent Motor connector.
3. Operate the left rear vent switch in both directions several times.
4. With the scan tool, read DTCs.

Does the scan tool display 9069-LEFT VENT WINDOW CONTROL CIRCUIT LOW?

No

- Replace the Left Rear Vent Motor.
- Perform the BODY VERIFICATION TEST. Verification Tests.

Yes

- Go To 3

3. LEFT REAR VENT WINDOW DRIVER (OPEN) CIRCUIT SHORT TO GROUND




1. Turn the ignition off.
2. Disconnect the Body Control Module C3 connector.

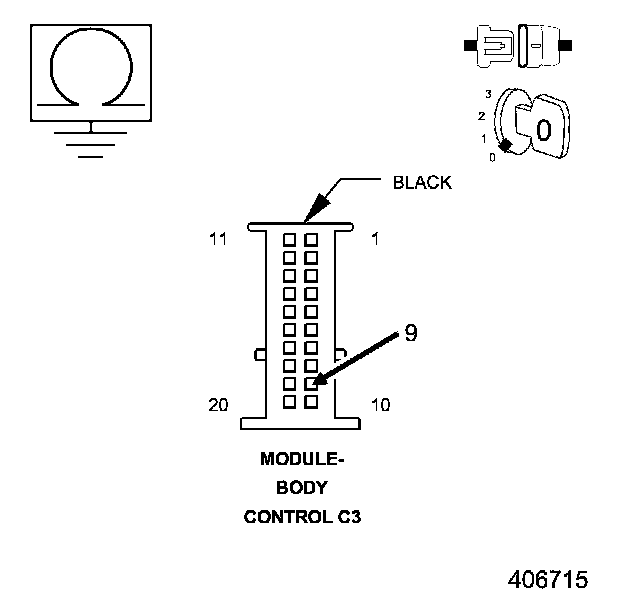

3. Measure the resistance between ground and the Left Rear Vent Window Driver (Open) circuit.

Is the resistance below 5,000 ohms?

Yes

- Repair the Left Rear Vent Window Driver (Open) circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Verification Tests.

No

- Go To 4

4. LEFT REAR VENT WINDOW DRIVER (CLOSE) CIRCUIT SHORT TO GROUND

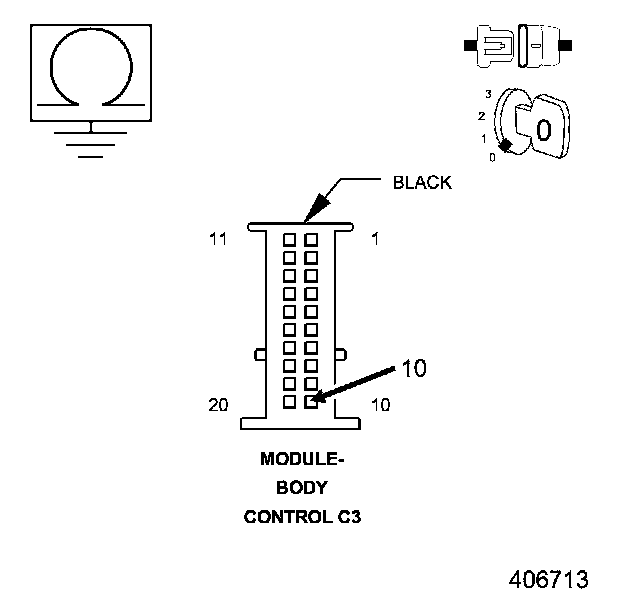

1. Measure the resistance between ground and the Left Rear Vent Window Driver (Close) circuit.

Is the resistance below 5,000 ohms?

Yes

- Repair the Left Rear Vent Window Driver (Close) circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Verification Tests.

No

- Go To 5

5. LEFT REAR VENT WINDOW DRIVER (CLOSE) CIRCUIT SHORTED TO THE LEFT REAR VENT WINDOW DRIVER (OPEN) CIRCUIT

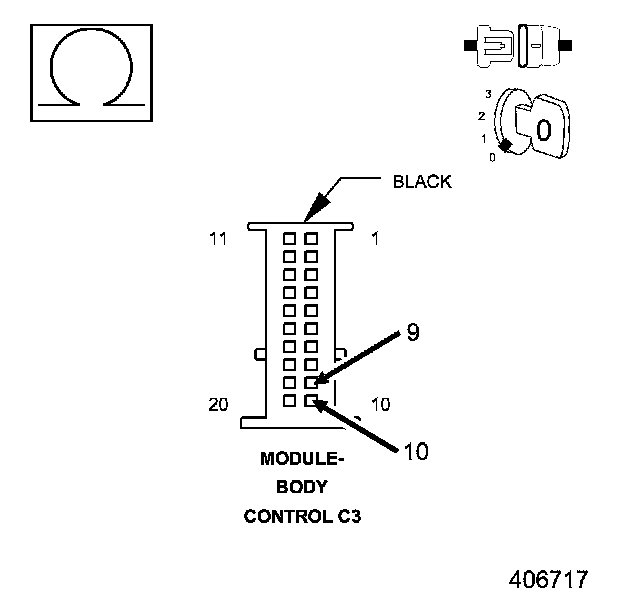

1. Measure the resistance between the Left Rear Vent Window Driver (Close) circuit and the Left Rear Vent Window Driver (open) circuit.

Is the resistance below 5,000 ohms?

Yes

- Repair the Left Rear Vent Window Driver (Close) circuit for a shot to the Left Rear Vent Window Driver (open) circuit.
- Perform the BODY VERIFICATION TEST. Verification Tests.

No

- Replace the Body Control Module.
- Perform the BODY VERIFICATION TEST. Verification Tests.
