9000 - 9999: 9068

9068-SUNROOF NOT STANDARDIZED

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously with the ignition on.

- Set Condition:

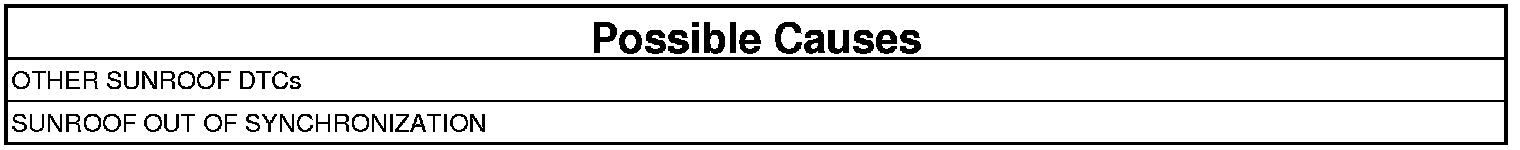

The Roof Control Module (RCM) senses that the Sunroof is out of synchronization. This code may set anytime the RCM was replaced, other service work was performed or a DTC was set.





DTCs ACTIVE
1. Turn the ignition off then on.
2. With the scan tool, read the RCM DTCs.

Are there any other RCM Active DTCs present at this time?

Yes

- Perform the appropriate diagnostic procedure.Testing and Inspection
- Using the scan tool, select Misc. Functions. Follow the instructions on the scan tool and perform the Power Roof Module Normalize Sunroof procedure.
- Perform the BODY VERIFICATION TEST. Verification Tests.

No

- Using the scan tool, select Misc. Functions. Follow the instructions on the scan tool and perform the Power Roof Module Normalize Sunroof procedure.
- Perform the BODY VERIFICATION TEST. Verification Tests.
