9065-SUNROOF MOTOR CONTROL PERFORMANCE-INCORRECT DIRECTION

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
The Roof Control Module (RCM) detects the Tilting/Sliding Roof Motor has wrong direction of rotation.





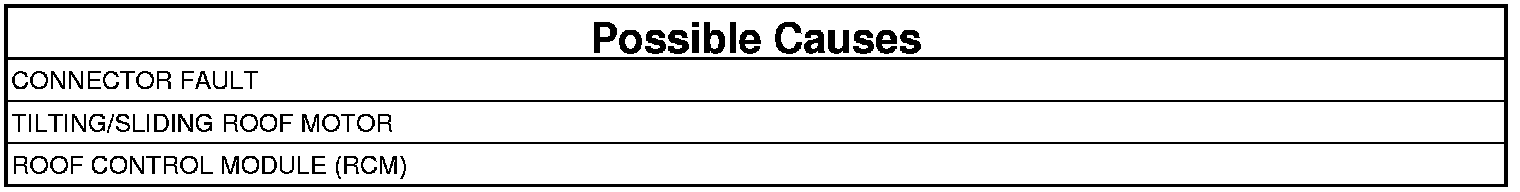

1. DTC IS ACTIVE
1. Turn the ignition on.
2. Operate the Tilting/Sliding Roof.
3. With the scan tool, read RCM DTC's.

Is the DTC status Active at this time?

Yes

- Go to 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

2. CONNECTOR FAULT
1. Inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.

Are any of the above conditions present?

Yes

- Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go To 3

3. DIRECTION OF ROTATION FOR TILTING/SLIDING ROOF MOTOR INCORRECT
1. Check the direction of rotation for the Tilting/Sliding Roof Motor.

Is the direction of rotation of the Tilting/Sliding Roof Motor correct?

Yes

- Go To 4

No

- Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

4. TILTING/SLIDING ROOF MOTOR
1. Turn the ignition off.
2. Disconnect the Tilting/Sliding Roof Motor harness connector.
3. Turn the ignition on.
4. Check the power and ground circuits to the Tilting/Sliding Roof Motor.

Are the power and ground circuits to the Tilting/Sliding Roof Motor ok?

Yes

- Replace the Tilting/Sliding Roof Motor.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Replace the Roof Control Module (RCM).
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
