Tire Pressure Module (TPM)

9030-INCOMPATIBLE MODEL/VARIANT

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Ignition on.

- Set Condition:
The TPM Module and the Electronic Ignition Switch/Central Gateway Module are not compatible based on software configuration. The circuit is continuously monitored.





1. ACTIVE DTC

NOTE: Review the vehicle repair history. If the Electronic Ignition Switch/Central Gateway Module has been replaced, ensure the that it has been programmed correctly. Repair as necessary.

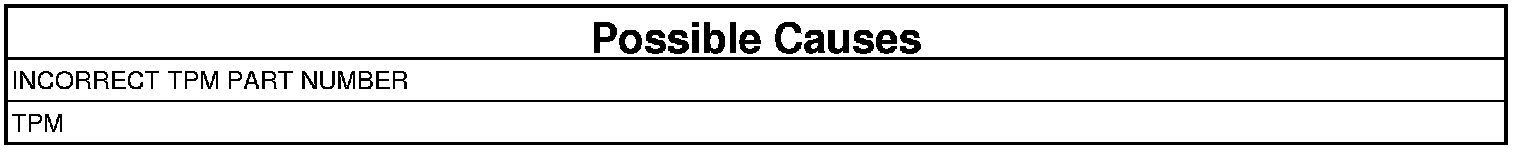

1. Review the part number on the TPM Module and ensure the correct one was installed.

Was the correct part installed?

Yes

- Go To 2

No

- Replace and program the TPM Module.
- Perform the TPM VERIFICATION TEST. TPM Verification Test.

2. INTERMITTENT CONDITION

NOTE: Check for any of the follow conditions:
- Poor wire to terminal connection
- Corroded terminals
- Backed out or loose terminals
- Broken wire internal to the insulation
- Dirty (partial) module ground

Were any of the above condition present?

Yes

- Repair as necessary.
- Perform the TPM VERIFICATION TEST. TPM Verification Test.

No

- DTC is not active at this time. Test complete.
