Roof Control Module (RCM)

9023-RIGHT READING LIGHT CONTROL CIRCUIT LOW

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
The Roof Control Module (RCM) detects that the Right Reading lamp is defective.





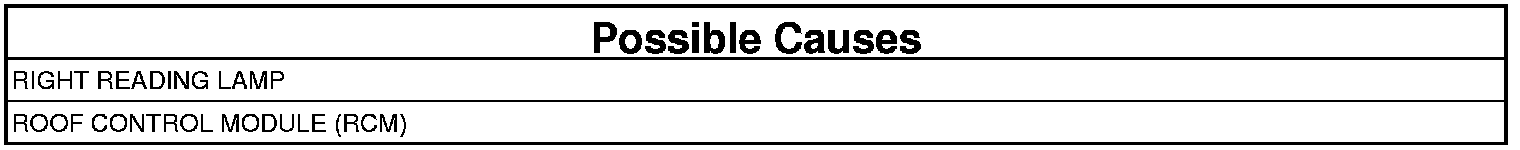

DTC IS ACTIVE
1. Turn the ignition off.
2. Replace Right Reading Lamp with a known good lamp.
3. Turn the ignition on.
4. With the scan tool, read RCM DTC's.

Is this DTC active?

Yes

- Check related wiring and connectors for possible shorts, or damage. If wiring and connectors are ok, replace the Roof Control Module (RCM).
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests

No

- Test complete.
