Gateway Module

9013-ELV POSITION UNDEFINED

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

- Set Condition:

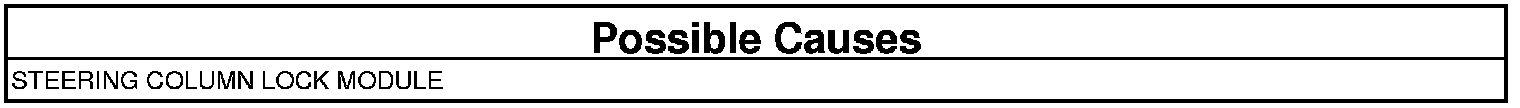

The Electronic Ignition Switch (EISCGW) detects an internal failure in the Steering Column Lock module (ELV).





CHECK FOR ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Steering Column Lock Module.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Disregard DTC.
