Roof Control Module Internal

9009-ROOF CONTROL MODULE INTERNAL

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously.

- Set Condition:
The Roof Control Module (RCM) detects an internal failure.

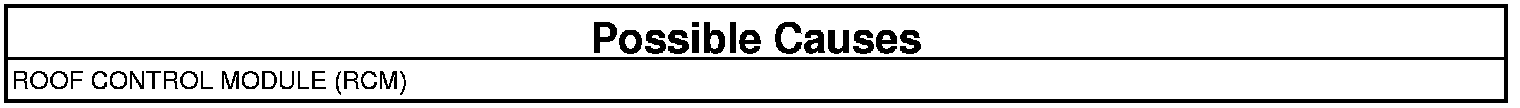

ROOF CONTROL MODULE (RCM)
1. The Roof Control Module (RCM) is reporting internal errors.

View repair.

Repair

- Replace the Roof Control Module (RCM).
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests
