Auxiliary Electrical Heating Module Internal (AEHM)

9001-AUXILIARY ELECTRICAL HEATING MODULE INTERNAL (AEHM)

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously.

- Set Condition:
The Auxiliary Electrical Heating Module (AEHM) detects an internal failure.

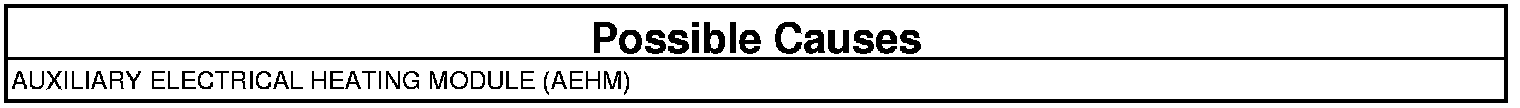

AUXILIARY ELECTRICAL HEATING MODULE
1. The Auxiliary Electrical Heating Module (AEHM) is reporting internal errors.

View repair.

Repair

- Replace the Auxiliary Electrical Heating Module (AEHM).
- Perform BODY VERIFICATION TEST - VER 1.Verification Tests
