2000 - 2999: 2248

2248-ALTERNATOR ELECTRICAL FAULT

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the engine running.

- Set Condition:
The ECM detects that the Generator output is not within specifications.





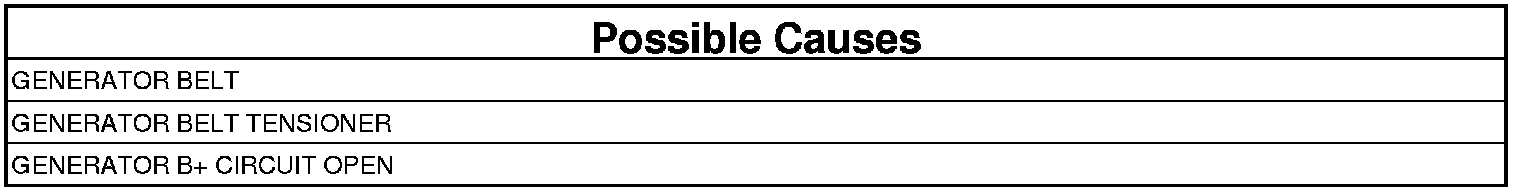

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. CHECK FOR OTHER DTCS
1. With the scan tool, check the ECM for LIN Bus or System Voltage related DTCs.

Are there any LIN Bus or System Voltage related DTCs?

Yes

- Repair other DTCs before continuing.

No

- Go To 2

2. GENERATOR B+ CIRCUIT
1. Turn the ignition off.
2. Using a test light connected to ground, probe the B+ circuit at the generator.

Does the test tight illuminate brightly?

Continue

- Go To 3

No

- Repair the Generator B+ circuit for an open.

3. CHECK GENERATOR DRIVE BELT
1. Visually inspect the generator drive belt for glazing, cracks and other problems.
2. Inspect the generator drive belt and tensioner for proper tension.

Were any problems found?

Yes

- Repair or replace as necessary.

No

- Go To 4

4. TEST DRIVE THE VEHICLE
1. Turn the ignition on.
2. With the scan tool, erase DTCs.
3. Test drive the vehicle.
4. With the scan tool, read DTCs.

Does the scan tool display this DTC?

Yes

- Replace the Generator.

No

- Refer to the CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. .
