Event 4E40

EVENT 4E40-THE ABM/ESP CONTAINS NO SOFTWARE AND MUST BE PROGRAMED FIRST

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously.

- Set Condition:
The Anti-Lock Brake Module detects no data.





PROGRAM ANTI-LOCK BRAKE MODULE

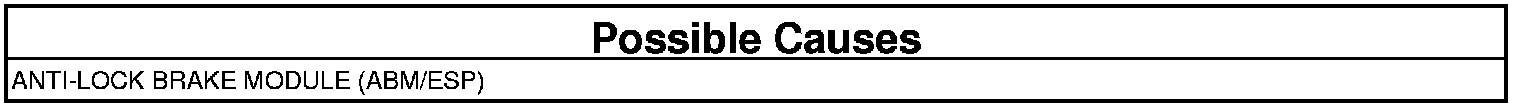

1. The ABM/ESP is not programmed correctly.

View repair.

Repair

- Program the ABM/ESP.
- Perform ABS VERIFICATION TEST. Verification Tests.
