Event 47D3






EVENT 47D3-THE CAN BUS MESSAGE OF COMPONENT INSTRUMENT CLUSTER IS IMPLAUSIBLE

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Ignition on and battery voltage greater than 10 volts.

- Set Condition:
An active DTC is stored in the ABM/ESP. One Trip Fault. Three good trips to turn off the MIL.

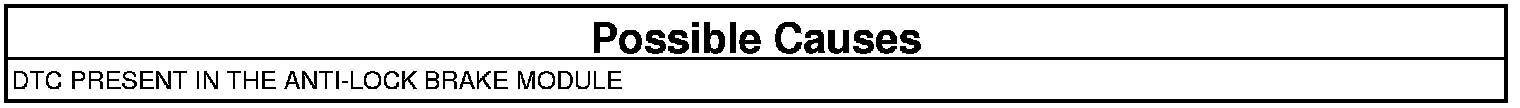

DTC PRESENT IN ANTI-LOCK BRAKE MODULE
1. This is an informational DTC letting you know that a DTC(s) is stored in the ABM/ESP or a CAN Bus Failure occurred.
2. Using a scan tool, read the ABM/ESP DTCs and perform the appropriate Diagnostic Procedure.

ABM/ESP Diagnostic Information complete.

Continue

- Test Complete.
