Event 474C

EVENT 474C-THE CAN BUS MESSAGE OF COMPONENT ENGINE CONTROL MODULE IS IMPLAUSIBLE

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Ignition on and battery voltage greater than 10 volts.

- Set Condition:
An active DTC is stored in the Engine Control Module. One Trip Fault. Three good trips to turn off the MIL.

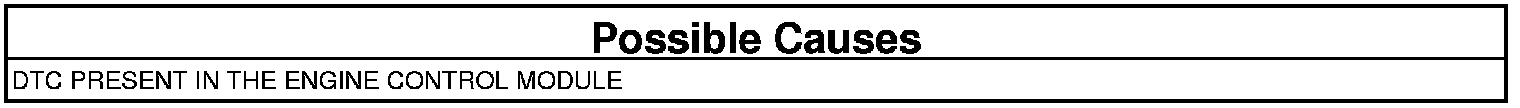

DTC PRESENT IN ENGINE CONTROL MODULE
1. This is an informational DTC letting you know that a DTC(s) is stored in the Engine Control Module or a CAN Bus Failure occurred.
2. Using a scan tool, read the Engine Control Module DTCs and perform the appropriate Diagnostic Procedure.

ECM Diagnostic Information complete.

Continue

- Test Complete.
