D131

D131-ERROR: SYSTEM CAN NOT BE TRAINED, TOO LITTLE RADIO ELECTRONIC AVAILABLE

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams

- When Monitored:
With the engine running. Vehicle speed greater than 16 km/h (10 mph).

- Set Condition:

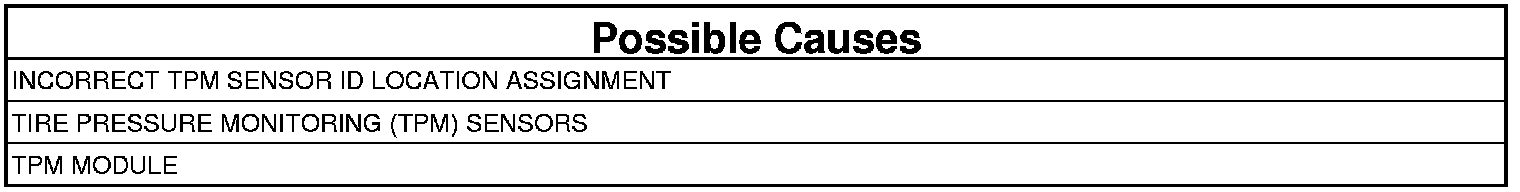

Incorrect TPM Sensor(s) or incorrect ID locations programmed in the TPM Module.





1. DTC STATUS

NOTE: All communication faults must be diagnosed before continue.

1. Ignition on, engine not running.
2. Using the scan tool, read DTCs.

Is the DTC active?

Yes

- Go To 2

No

- Go To 5

2. TPM SYSTEM
1. Inspect and review the vehicle for the following:
- Review the vehicle repair history. The incorrect tire pressure sensor will set this DTC.
- Inspect for aftermarket rims that do not have Tire Pressure Monitoring (TPM) Sensor installed or that would not allow correct transmission of the sensor.
- Check the vehicle for aftermarket accessories that could compromise the RF frequency signal before diagnosing the TPM system.

Were any of the conditions found?

Yes

- Repair as necessary.
- Perform the TPM VERIFICATION TEST. TPM Verification Test

No

- Go To 3

3. TIRE PRESSURE MONITORING (TPM) SENSOR(S)
1. Using the TPM-RKE Analyzer, test each of the Tire Pressure Monitoring (TPM) Sensors.

Did all the Tire Pressure Monitoring (TPM) Sensors pass?

Yes

- Go To 4

No

- Replace the Tire Pressure sensor that failed.
- Perform the TPM VERIFICATION TEST. TPM Verification Test.

4. TIRE PRESSURE MONITORING (TPM) SENSOR ID LOCATIONS
1. Using the TPM-RKE Analyzer, program the Tire Pressure Monitoring (TPM) Sensor IDs to the correct wheel locations.

Are the Tire Pressure Monitoring (TPM) Sensors IDs in the correct wheel locations?

Yes

- Replace the TPM Module.
- Perform the TPM VERIFICATION TEST. TPM Verification Test.

No

- Use the TPM-RKE Analyzer, to program the Tire Pressure Monitoring (TPM) Sensor IDs to the correct wheel locations.
- Perform the TPM VERIFICATION TEST. TPM Verification Test.

5. INTERMITTENT CONDITION

NOTE: Check for any of the follow conditions:
- Poor wire to terminal connection
- Corroded terminals
- Backed out or loose terminals
- Broken wire internal to the insulation
- Dirty (partial) module ground

Were any of the above condition present?

Yes

- Repair as necessary.
- Perform the TPM VERIFICATION TEST. TPM Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time.
