970B-OUTPUT 11 CONTROL CIRCUIT OPEN

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the Ignition Switch in the on position and the Programmable Special Module (PSM) is awake.

- Set Condition:
This code will set when the Output terminal or corresponding circuit is open for at least 100 ms.





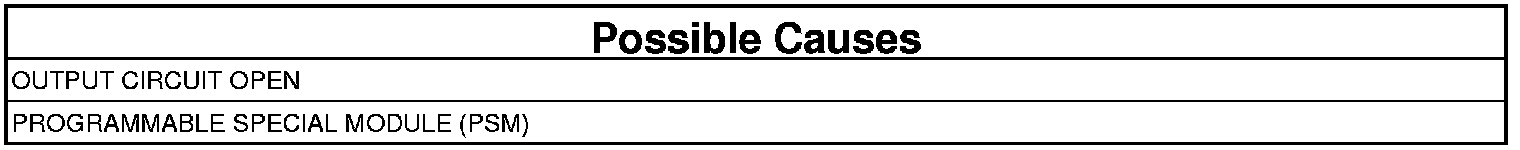

1. TEST FOR INTERMITTENT CONDITION
1. With the scan tool, record and erase DTCs
2. Turn the ignition on and activate Output.
3. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform the BODY VERIFICATION TEST Verification Tests.

2. OUTPUT CIRCUIT OPEN
1. Turn the ignition off.
2. Disconnect the corresponding component harness connector.
3. Disconnect the corresponding PSM harness connector.
4. Measure the resistance of the Output circuit between the corresponding component harness connector and the corresponding PSM harness connector.

Does the ohm meter read open circuit?

Yes

- Repair the Output circuit for an open.
- Perform the BODY VERIFICATION TEST Verification Tests.

No

- Replace the Programmable Special Module (PSM).
- Perform the BODY VERIFICATION TEST Verification Tests.
