90B1

90B1-BODY CONTROL MODULE INTERNAL

For a complete wiring diagram Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

- Set Condition:

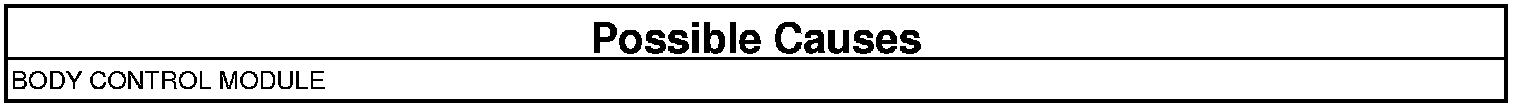

The Body Control Module detects an internal failure.





CHECK FOR ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Body Control Module.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Disregard DTC.
