Body Control Module (BCM)

909C-PASSENGER WINDOW CONTROL CIRCUIT STUCK ON

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously

- Set Condition:
When the Passenger Window Relay (internal in the BCM) is held in any position, other than neutral, for longer than 30 seconds, this code will set.





TEST FOR INTERMITTENT CONDITION
1. Using the scan tool, record and erase the DTCs
2. Operate the Passenger Window Switch in all positions several times.
3. Cycle the ignition from on to off.
4. Turn the ignition on.
5. Using the scan tool, read the DTCs.

Does the scan tool display 909C-PASSENGER WINDOW CONTROL CIRCUIT STUCK ON?

Yes

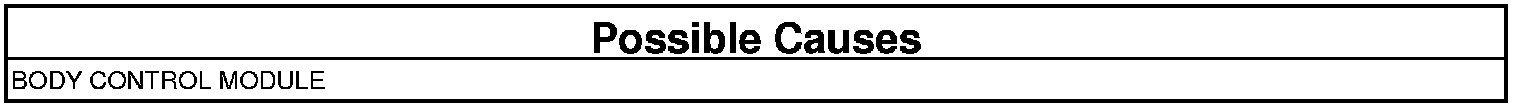

- Replace the Body Control Module.
- Perform the BODY VERIFICATION TEST. Verification Tests.

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Verification Tests.
