4E4C

4E4C DRIVE FAULT OCCURRED

For a complete wiring diagram, Refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With ignition on.

- Set Condition:
Conditions for running drive test not met.





CHECK FOR A DTC 4E4C DRIVE FAULT OCCURRED

NOTE: This DTC must be active for the results of this test to be valid.

1. Turn the ignition on.
2. With the scan tool, read and record DTCs.

Does the scan tool display: 4E4C DRIVE FAULT OCCURRED?

Yes

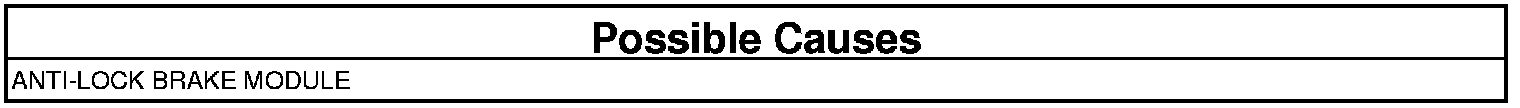

- Replace the Anti-Lock Brake Module.
- Perform the ABS VERIFICATION TEST. Verification Tests.

No

- Perform the ABS-INTERMITTENT CONDITION TEST. Testing and Inspection.
