Rear

REAR





CAUTION: Do not allow the wiper arm to spring back against the glass without the wiper blade in place or the glass may be damaged.

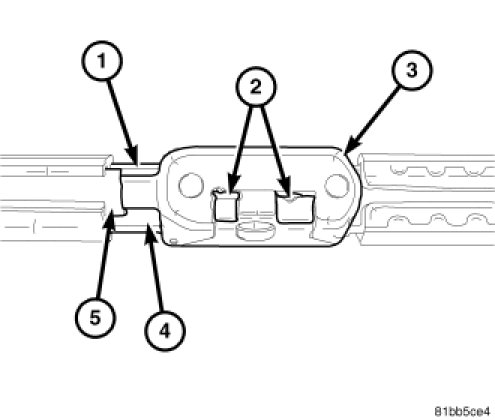

1. Position the rear washer nozzle body (3) to the back of the rear wiper arm (1).
2. Reconnect the rear washer supply hose (5) to the barbed nipple of the nozzle (4).
3. Fold the nozzle retainer over the front of the rear wiper arm and, using hand pressure, squeeze the nozzle and nozzle retainer together firmly and evenly until both integral latch features (2) are fully engaged on the back of the nozzle body.
4. Reinstall the rear wiper blade onto the rear wiper arm. .
