Front

FRONT

WARNING: To avoid serious or fatal injury during and following any front wiper system service, be certain that the key is removed from the ignition lock. When the multi-function switch is set to the I (INTERMITTENT or AUTOMATIC) position, the front wipers could move unexpectedly at any time causing injury or damage.

CAUTION: Do not open the hood while the front wiper arms are folded away from the windshield. Both the hood and the wiper arms could become damaged.

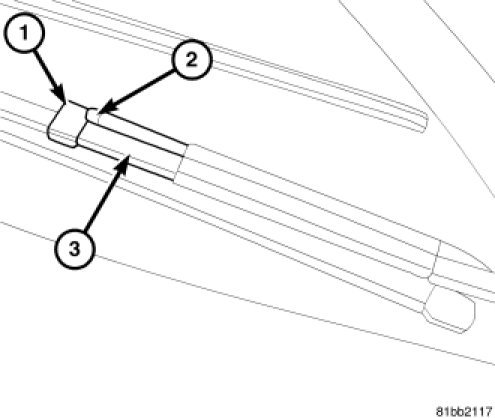

1. Position the front washer nozzle (1) above the front wiper arm (3) on the windshield glass.
2. Reconnect the washer hose (2) to the barbed nipple of the front washer nozzle.
3. Using hand pressure, slide the front washer nozzle over the front wiper arm until it snaps into place. Be certain that the nozzle locator feature is engaged in the locator dimple on the wiper arm.
