Propeller Shaft - Removal

REMOVAL









1. Secure vehicle to prevent it from rolling.

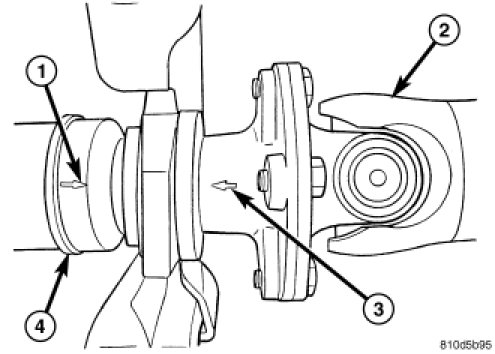

2. Make installing reference marks (1, 3) on propeller shaft.

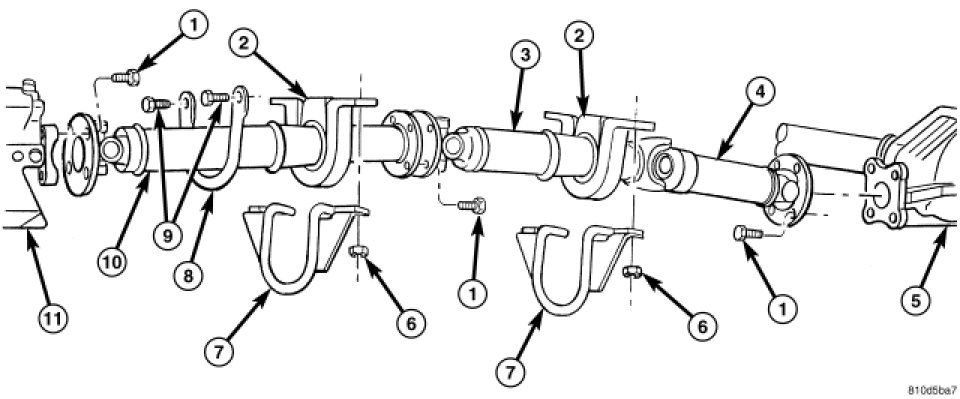

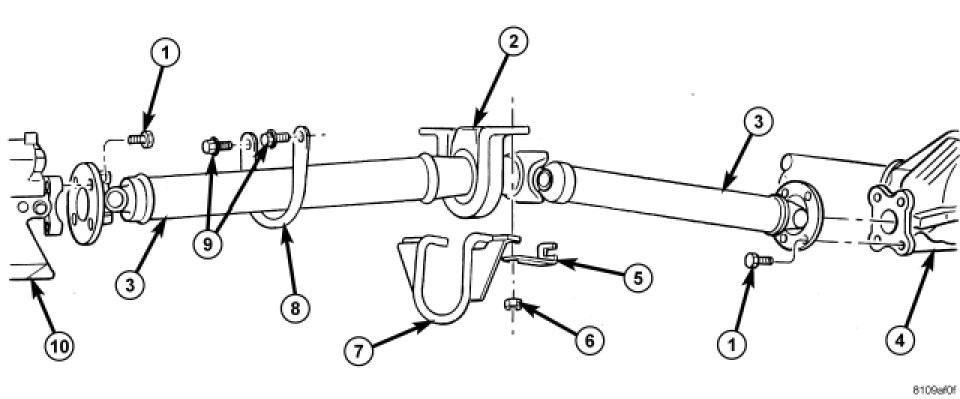

3. Remove propeller shaft intermediate bearing nuts from retaining bracket and bracket for brake cable.








4. Remove retaining bracket bolts (8).
5. Remove propeller shaft bolts (1) from rear axle and transmission at the flange.
6. Remove shaft from the vehicle.
