Freightliner Truck
>>
2008
>>
Sprinter 3500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Specifications
>>
Mechanical Specifications
Mechanical Specifications

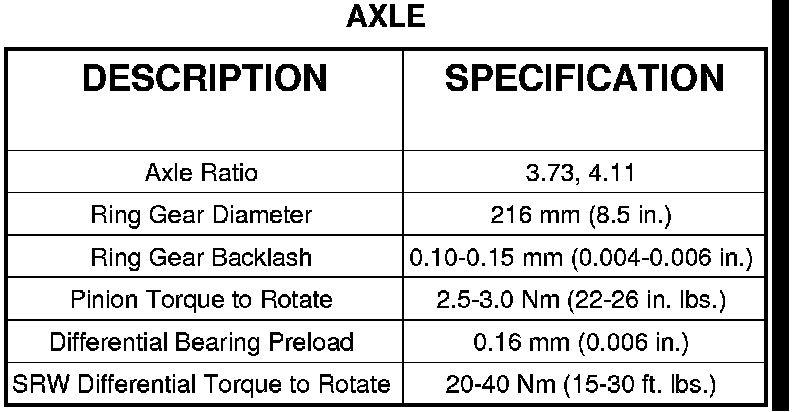

REAR AXLE SPECIFICATIONS

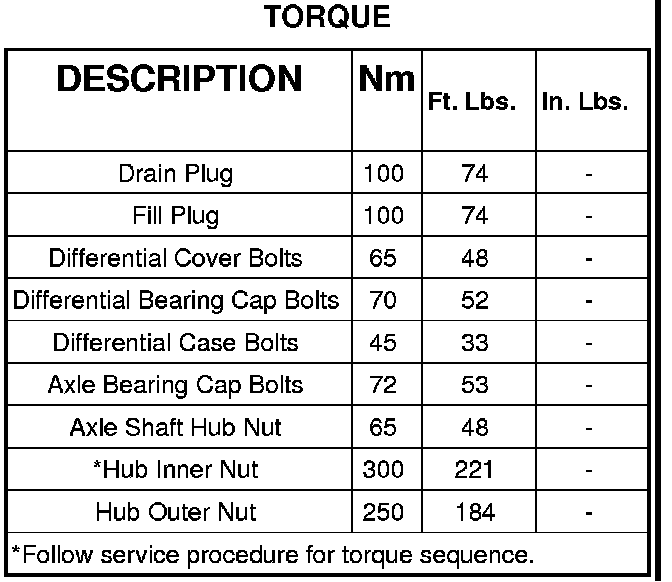

TORQUE SPECIFICATIONS
