Bearings-Differential Case
>>
Removal
Removal
REMOVAL
1.
Remove differential case from axle housing.
2.

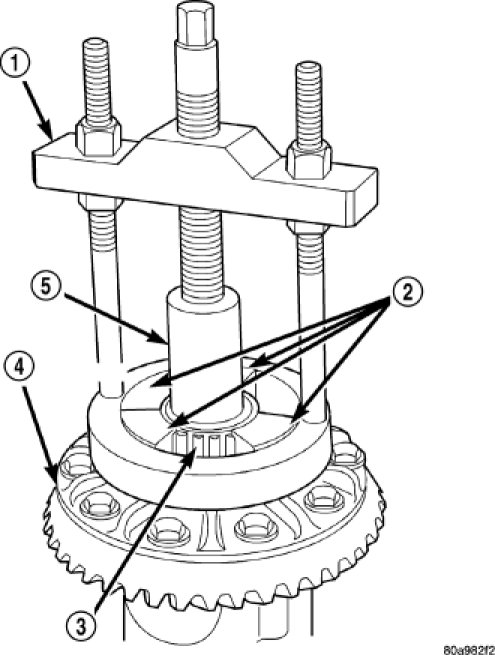

Remove differential bearings (3) from the case with Puller/Press C-293-PA (1) and Adapters 9614 (2) and Plug 8888 (5).
