Removal

REMOVAL

NOTE: Refer to the removal and installation procedures only if the fill tube seal is located in the transmission fill tube bore.









1. Lift and support the vehicle.

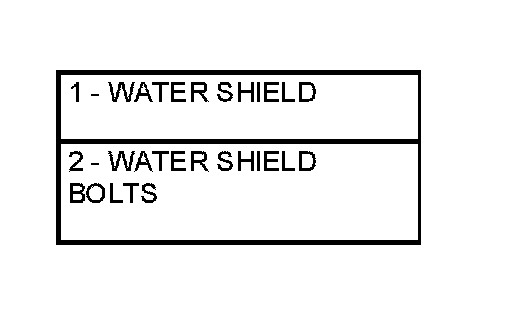

2. Remove water shield bolts and water shield (if equipped).

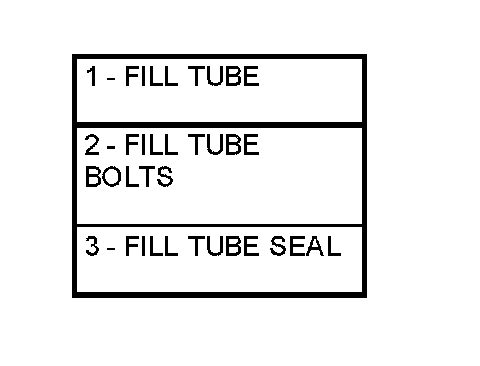

TYPICAL FILL TUBE BOLTS





3. Remove the transmission fill tube bolts (2).
4. Lift the transmission fill tube out of the transmission case.

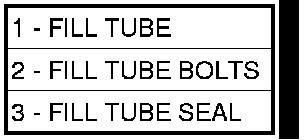

5. Using a small pry tool remove the transmission fill tube seal.
