Installation

INSTALLATION

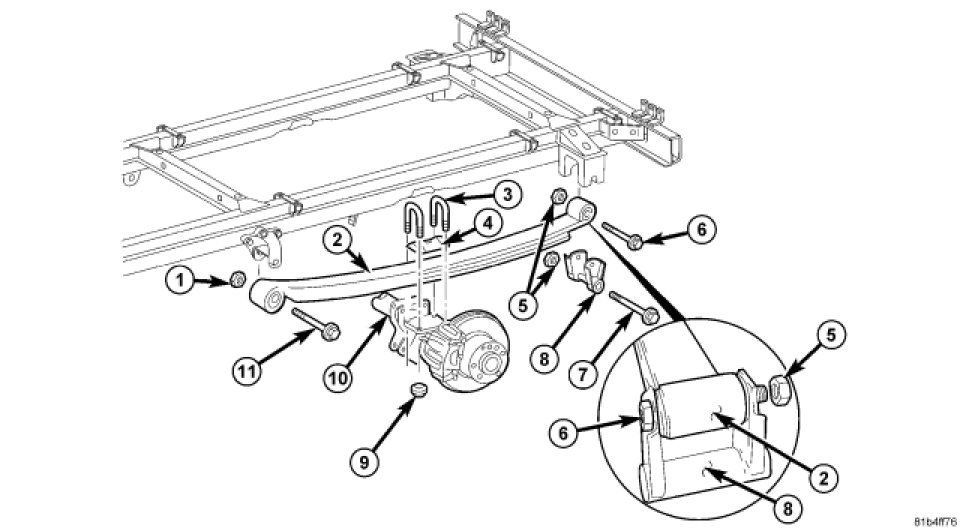

1. Install the spring shackle (8) to the spring (2). Tighten the nuts (5) and bolts (6) See torque specification chart.
2. Raise the rear axle (10) while installing the spring shackle (8) to the spring bracket. Tighten the nuts (5) and bolts (6) to 90 Nm (66 ft. lbs.) (SRW) or 185 Nm (136 ft. lbs.) (DRW).
3. Lower the vehicle.
