Installation

INSTALLATION

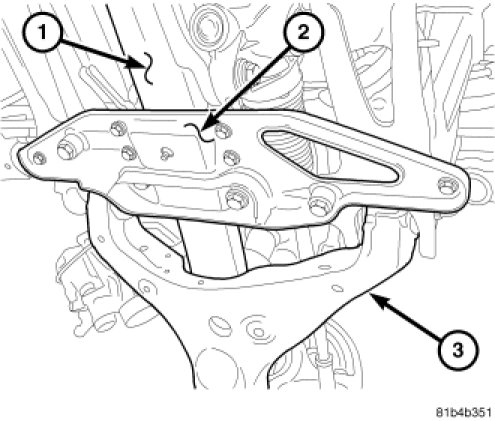

1. Fit the lower spring clamp plate (2) together with the lower spring rubber block.
2. Install the retaining bolts for the spring clamp plate (2). Tighten M8 bolt to 29 Nm (21 ft.lbs.) or Tighten M12 X 1.5 bolt to 106 Nm (78 ft.lbs.) Plus an additional 90° turn.
3. Remove the jack and lower the vehicle.
