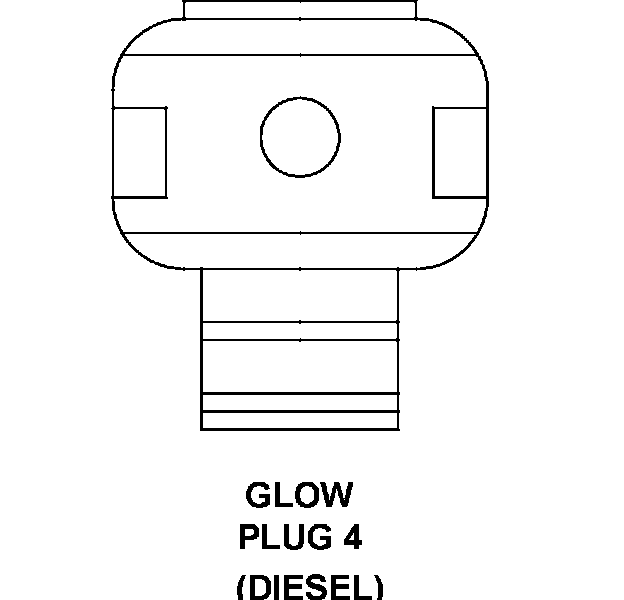

Glow Plug 4




Component ID: 215
Component : GLOW PLUG 4

Connector:
Name : GLOW PLUG 4
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 118 12BK/VT -
