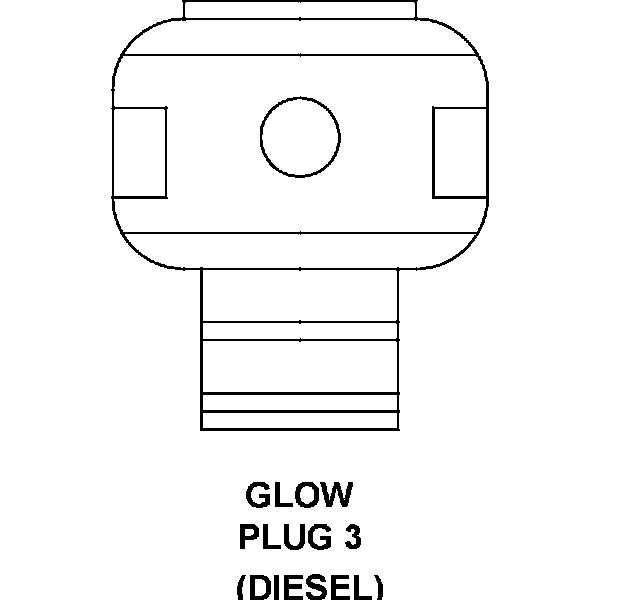

Glow Plug 3




Component ID: 214
Component : GLOW PLUG 3

Connector:
Name : GLOW PLUG 3
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 117 12BK/OR -
