Removal

REMOVAL

1. Disconnect the negative battery cable.
2. Disconnect the control valve wiring harness connector.

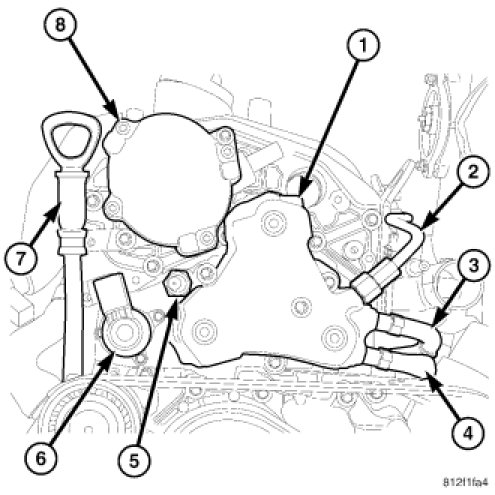

3. Remove the valve fasteners and remove the control valve.
