PCV Heater: Diagrams

Component ID: 218

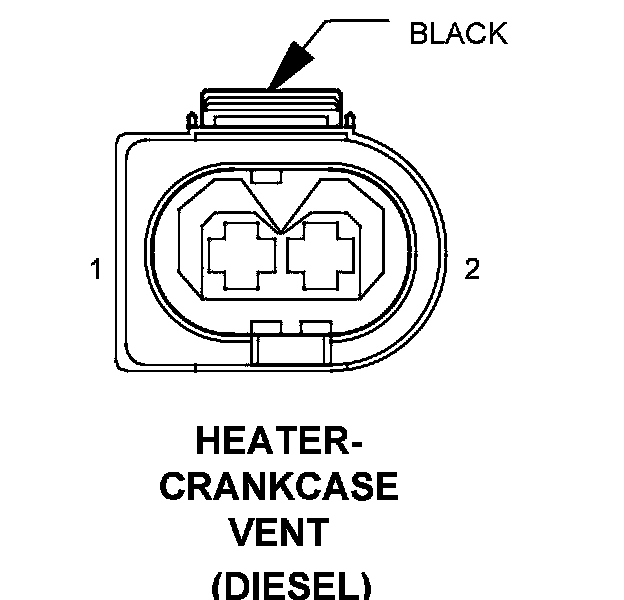

Component : HEATER-CRANKCASE VENT

Connector:
Name : HEATER-CRANKCASE VENT
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 1309 18BK/BR CRANKCASE VENT HEATER CONTROL
2 U748 18BK/DG FUSED MAIN RELAY OUTPUT
